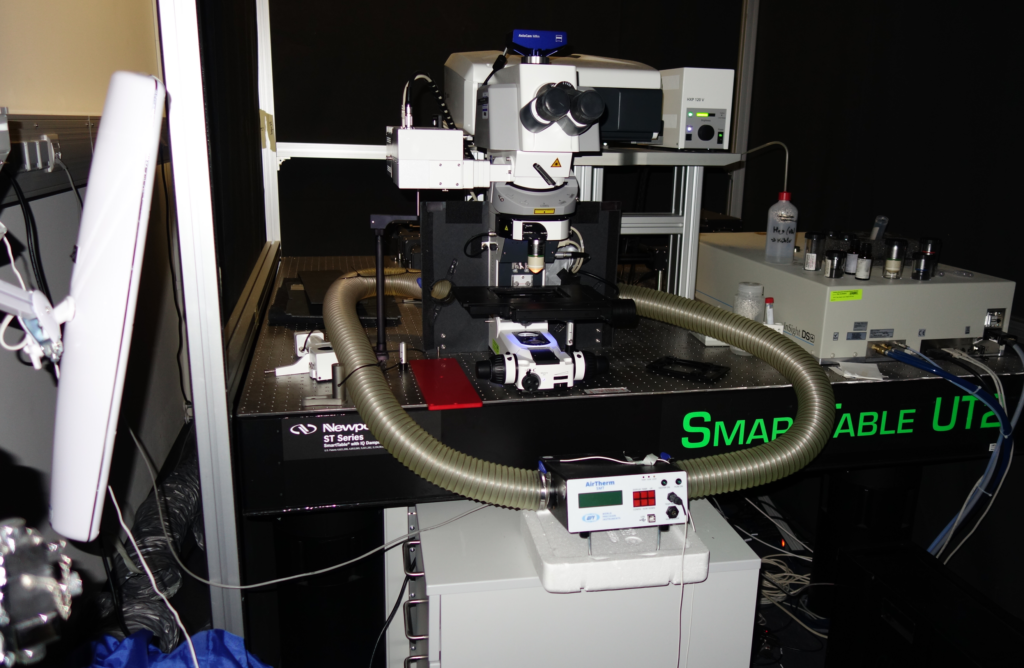

Zeiss LSM880 NLO Intravital Microscope
Zeiss NLO-880 2 Photon
| Magnification | 10 | 20 | 20 | 40 | 63 |
| NA | 0,3 | 1 | 1 | 1 | 1,4 |
| Immersion | water dipping no glass corr. |
water dipping no glass corr. |
water | water dipping no glass corr. |
oil |
| Environment | N-Achroplan | Plan – Apochromat | Plan – Apochromat | Plan – Apochromat | N-Achroplan |
| λ exc (nm) | 405 | 458 | 488 | 514 | 561 | 633 | 680 – 1300 2P | 1040 2P |
| λ em (nm) or Filter | LSM – 3 detection channels with arbitrary wavelength range selection | objective NDD – 2 channels with exchangeable filters 500-550 / 575-610 / 650-700 NDD – 4 channels: SP485 / 500-550 / 575-610 / 640-710 |
||||||
| Fluorescence Lamp | HXP 120V | 38 wf | 43 wf | 49 wf | 50 wf |
| Fluorescence Filter | ex:BP470/40; em:BP525/50 | ex: BP545/25; em:BP605/70 | ex: G 365; em: BP445/50 | ex:BP640/30; em:BP690/50 |
Additional features: AxioCam MRm
