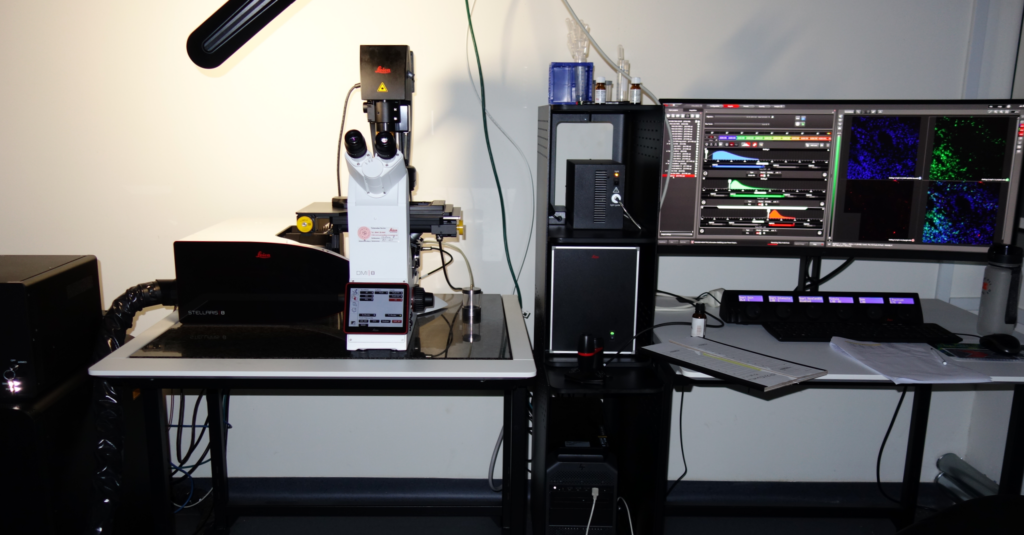

Leica Stellaris 8 Broadband WLL & Tau-Sense LSM
100x objective is used with SP5 and Stellaris 8 and needs to be included in booking
Confocal microscopy was enabled on a Leica Stellaris 8 laser scanning microscope, funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) – 441730715
Objectives have glass correction ∞/0.17 unless stated otherwise
| Magnification | 10 | 20 | 40 | 63 | 100 |
| NA | 0,3 | 0,75 | 1,3 | 1,3 | 1,44 |
| Immersion | dry | multi immersions | oil | glyc | oil |
- λ exc (nm):
- 405
- White light laser (WLL)
440-790nm – 8 channel AOTF
- λ em (nm) or Filter: AOBS – 5 detection channels with arbitrary wavelength range selection (410-850nm)
Fluorescence Lamp:
- LED 3 (390-680nm)
Fluorescence Filter:
- LED405: ex405/60, dm455; em470/40
- FITC: ex480/40; em527/30
- RHOD: ex546/10; em585/40
Additional features:
- 5 sensitive Power Hybrid detectors HyD S
- TauSense for lifetime based separation
