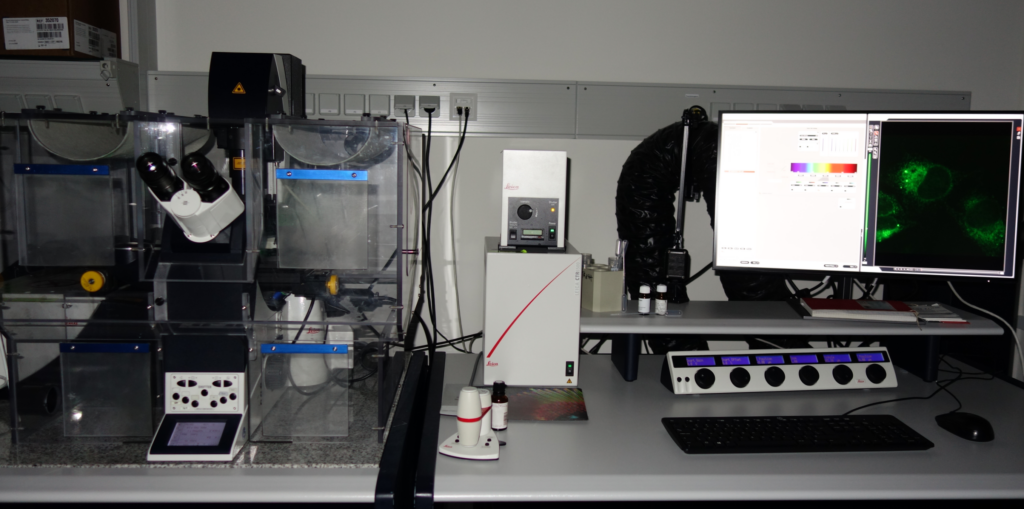

Leica SP5 II Fast Resonant Scanner
| Magnification | 10 | 20 | 40 | 63 | 100 | |
| NA | 0,3 | 0,7 | 1,25 | 1,2 | 1,3 | 1,44 |
| Immersion | dry | multi immersions | oil | water | glyc | oil |
| λ exc (nm) | 405 | 458 | 476 | 488 | 496 | 514 | 561 | 633 |
| λ em (nm) or Filter | AOBS – 5 detection channels with arbitrary wavelength range selection | |||||||
| Fluorescence Lamp: | Mercury Arc Lamp | |||
| Fluorescence Filter: | Dapi | GFP | CY3 | CY5 |
Environment : Temp. and C02 control
Additional features: Fast Resonant Tandem Scanner (8.000 Hz), 2 sensitive Hyd detectors, and fully motorized stage
